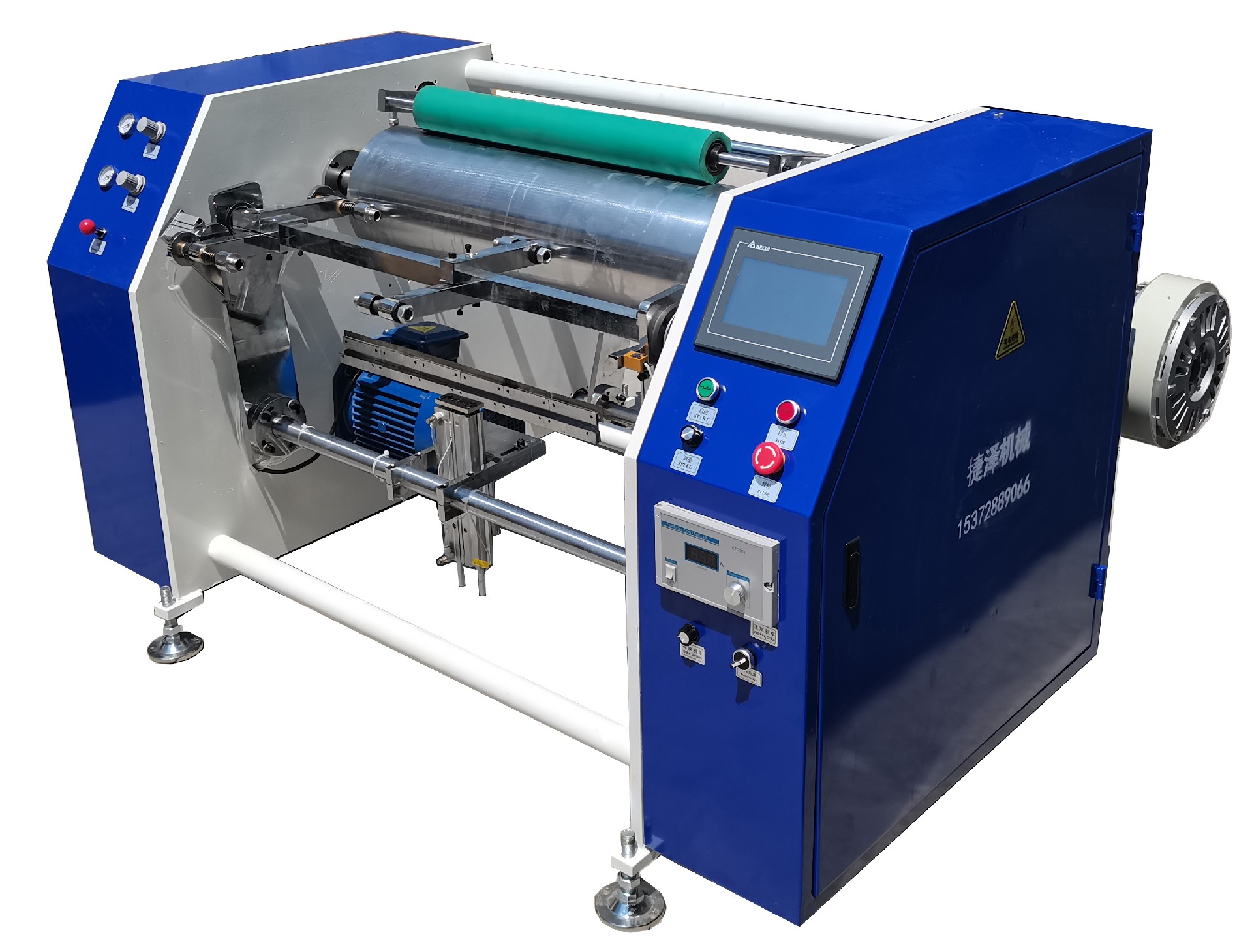

Aluminium foil and cling film rewinder
Enquiry nowMotor
Siemens, Baide
Inverter
Delta, Taiwan
PLC
Omron, Japan
Meter counter
Omron, Japan
Relay
Schneider, Japan
Touch screen
Delta, Taiwan
This machine is very easy operation. No need the experience worker request
Model | JZ-500L-2 |
Material | Aluminum foil , cling film |
Width of material | 100-500mm |
Max. Diameter of Jumbo roll | 600mm |
Max. Diameter of rewinded roll | 120mm |
Rewind length | 2.5-300m/roll |
Thickness of material | 0.008-0.05mm |
Rewinding speed | 0-300m/min |
Unwinding diameter | 3 inch |
Rewind clamp holder | According to paper core size(one set free charge) |
Power of main motor | 2.2 Kw |
Installation dimension | 1520 x 1650 x 1200mm |
Weight | 900kg |
